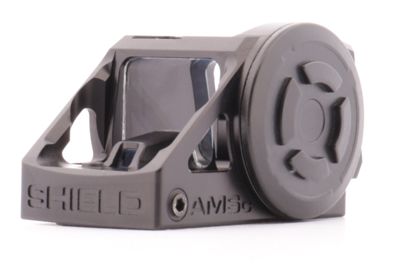

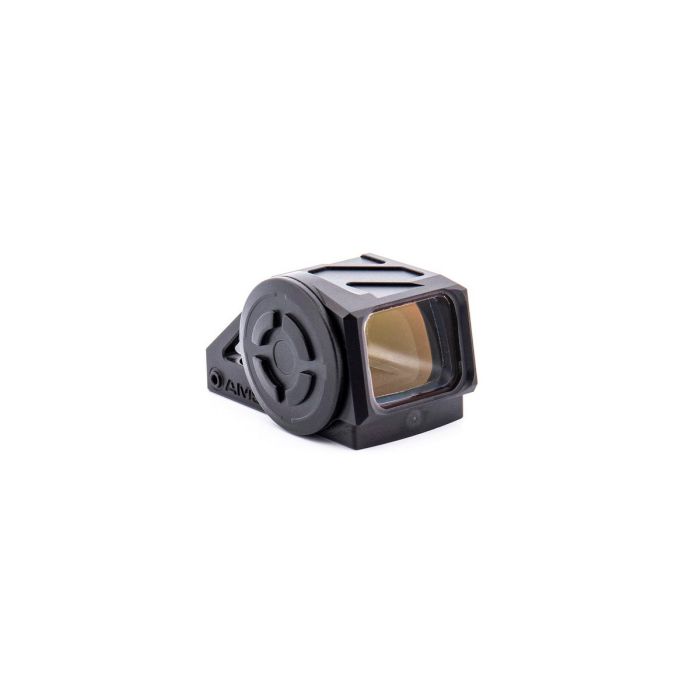

Shield AMSc - 4MOA - Advanced Mini Sight Compact with closed LED emitter

Shield AMSc - 4MOA - Advanced Mini Sight Compact with closed LED emitter.

Following the release of the AMS comes SHIELD's latest product: the AMSc. The AMSc expands the range of enclosed emitters and offers a variety of similar functions to its big brother, but in a smaller housing. It is designed for narrow frame or single stack pistols for daily use and concealed carry.

Unique SHIELD technology ensures forward and backward compatibility with existing gun installations and accessories. A newly designed aerospace-grade billet aluminum housing offers numerous features not normally found in a micro-compact product.

Clickless adjustment allows for much more precise zeroing with extended elevation and windage adjustments. Various battery compartment options allow you to choose the battery capacity to extend the life or reduce the size of the housing.

A nitrogen-sealed housing, submersible to a depth of 9 meters for up to 30 minutes, ensures all-weather capability without user intervention.

Thanks to multiple patents, the AMSc is still able to offer co-witnessing using our hollow bridge sight design and remains waterproof while being one of the smallest and most attractive closed sights on the market.

Patented design features include:

• Mounting to the familiar SHIELD footprint.
• The patented SHIELD mechanism allows the sight to be shared with standard sights, significantly reducing training time and cost.
• The mechanism requires no click adjustment and thus ensures significantly higher precision when firing.
• Square, crystal clear glass lens with no filters to interfere with the view of the world through the sight.
• Made of high-grade aluminum with extremely precise tolerances while maintaining an attractive, modern look.
• The smallest and lightest in its class, weighing only 27.1 g (without battery).
• Intelligent on/off function that allows the user to reactivate the previous setting.
• 12-level manual brightness adjustment, including 3 NVG settings.
• 3-step automatic brightness setting for always-on readiness.
• 20,000 hours in average daylight with one CR2032 battery.
• Side-access battery compartment with optional CR2025, CR2032 or CR2050 batteries. This allows the user to choose between longer battery life and better concealability.
• Nitrogen-sealed housing, submersible up to 9 meters for 30 minutes.
• Industry-first mounting interface for mounting accessories such as roll cages, flashlights, lasers, GoPro cameras, lens covers and much more.

Optical features
Light source: Red light emitting diode (LED). No laser; completely eye-safe. No radioactive materials.
Red dot size options: 4MOA and 8MOA
Lens: Square, crystal clear glass lens with no filters to interfere with the image of the world through the visor.
Lens Coating: Anti-reflective, color-free coating minimizes the visible signature.

Electronics
Battery: One 3V lithium metal battery, CR2025, 2032 or 2050. Battery caps in various sizes for additional concealability or battery life.
Battery life: 20,000 hours in average daylight with a CR2032.
Battery holder: side mounting of the battery
Brightness adjustment: 3-stage automatic or 12-stage manual.
Brightness range:
Lowest: Compatible with night vision devices.
Highest: Visible against the sky in bright daylight.

Housing
Housing material: Anodized aerospace grade aluminium (6082 T6).
Color: Matt black.
Dimensions:
- Visor with 2025 battery and cap (L x W x H): 40.8 mm x 25 mm x 25.6 mm (1.65“ x 0.98” x 1").
- Visor with 2032 battery and cap (L x W x H): 40.8 mm x 26 mm x 25.6 mm (1.65“ x 1.2” x 1").
- Visor with 2050 battery and cap (L x W x H): 40.8 mm x 27.5 mm x 25.6 mm (1.65“ x 1.8” x 1").
Weight: 27.1 grams / 0.95 ounces (without battery).
Mount: The SHIELD footprint - 100+ mounting solutions.
Immersion in water: 30 feet for 30 minutes (IP68).
