InfiRay HYH50W RICO Hybrid 640 3x 50mm Multi-function Thermal Weapon Sight
InfiRay Outdoor HYH50W RICO Hybrid 640 3x 50mm Multi-function Thermal Weapon Sight.

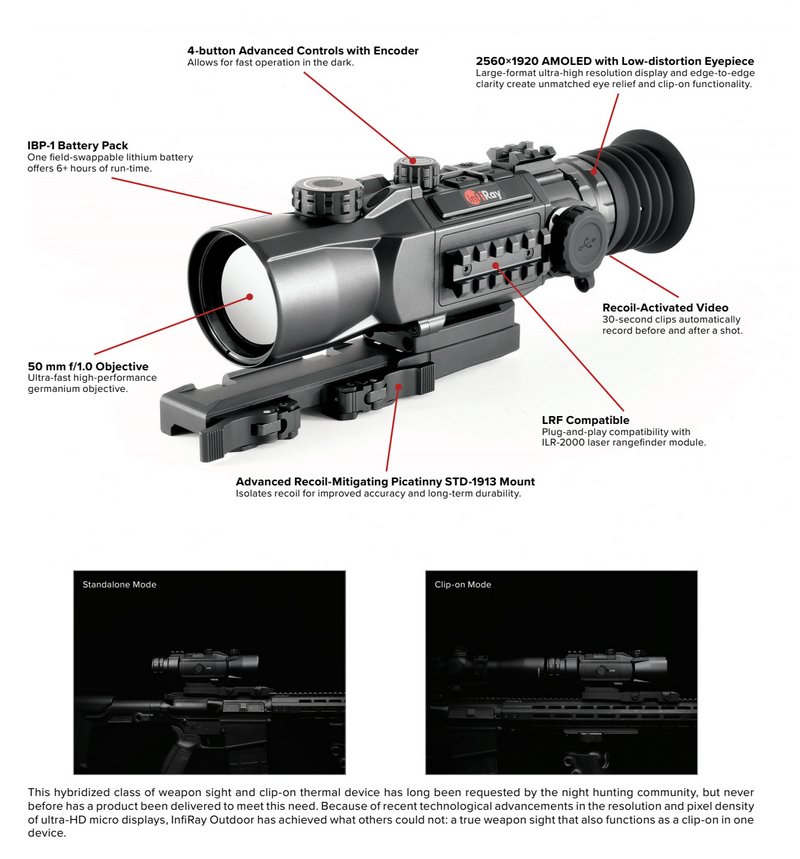

The RICO HYBRID fuses the capabilities of a thermal clip-on and a thermal weapon sight to create a new breed of thermal device. This new HYBRID breed gives you never-before-seen versatility and performance boasting a 2,400 yard detection range as a dedicated thermal sight or an inline clip-on sight with day optics up to 10X. The combination of the HYBRID’s low-distortion orthoscopic eyepiece paired with a 1.03” 2560x1920 UHD display allows for an extra large sight picture with edge to edge clarity.
The HYBRID’s extra large sight picture is comfortable viewing as a dedicated sight, and still maintains the pixel density and resolution for use as a clip-on optic. The HYBRID also unlocks advanced new features such as compatibility with a 2,000 yard laser rangefinder, a custom reticle generator, bluetooth, and an onboard ballistic solver.
| Device Technology: | Thermal Imaging |
| Objective Focal Length: | 50mm |
| Sensor Pixel Size: | 12μm |
| Sensor Frame Rate: | 50hz |
| Detection Range: | 2400 Yards |
| Sensor Resolution: | 640×512 |
| Optical Magnification: | 3x |
| Digital Magnification: | 8x, stepped |
| Onboard Recording: | Yes |
| Objective F#: | 1.1 |
| Objective Diameter: | 50mm |
All models in the HYBRID series can be used as a clip-on thermal in front of a day scope (with magnification up
to 10x). Additionally, all HYBRID models are compatible with the ILR-1000-2 Laser Rangefinder, which provides
real-time ranging data on the display and can even dial a zero based on user-supplied drop values.
Ballistic Solver
The HYH50W supports ballistic calculation via a user-uploaded .xlsx file. Calculate your ballistics with your preferred software, then export and upload your trajectory in 5 meter increments. Once you have a ballistic profile loaded, plug in the ILR-1000 laser rangefinder and the HYBRID can calculate your drop and display it on your reticle in a split second.
Optics
Objective Focal Length: 50mm
Detection Range: 2400 Yards
Objective Lens Material: Germanium
Optical Magnification: 3x
Digital Magnification: 8x, stepped
Focusing Mechanism: Manual Focus
Display Type: AMOLED
Vertical Angular Field of View: 6.6°
Horizontal Angular Field of View: 8.8°
Objective F#: 1.1
Objective Diameter: 50mm
Eye Relief: 60mm
Diopter Range: -4 - +2
Display Resolution: 2560×2560
Environmental Specifications
Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
Operating Temperature Range: -4°F~122°F
Ingress Protection: IP67
Sensor Specifications
Device Technology: Thermal Imaging
Sensor Type: InfiRay MICRO II
Sensor Pixel Size: 12μm
Thermal Sensitivity: ≤25mK
Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
Spectral Response: 8-12 Microns
Sensor Frame Rate: 50hz
Sensor Resolution: 640×512
Physical
Mounting Interface: Picatinny STD-1913 rail
Height: 2.99 in
Width: 3.03 in
Length: 11.02 in
Housing Material: Aluminum
Weight: 40.5 oz
Features & Performance
Mobile App: Yes
Wifi: Yes
Image Capture: Yes
Connector Type: USB-C
Video Output: Analog RS-170/NTSC
Connector Output: Power/Data
Onboard Recording: Yes
Warranty: 5 Years, with 5 days turnaround time
Reticle: 8 (7 Static, 1 Custom BDC Reticle)
Color Palettes: White Hot, Black Hot, Red Hot, Iron Red, Rainbow, Outline
Rangefinder: ILR-1000 LRF AC82 (Optional/Not Included)
Picture-in-Picture: Yes
Storage Capacity: 64GB
User-Updatable Firmware: Yes
One-Shot Zero: Yes
Stand-by Mode: Yes
Power Source: Built-In Battery Pack (4+ Hours), IBP-4 Power Bank (6+ Hours)
External Power Source: USB-C
Startup Time: Under 10 Seconds
| Manufacturer | Infiray Outdoor |
|---|---|
| SKU | HYH50W |
| GTIN (UPC / EAN) | 850029093961 |
| Weight (grams) | 1150 |
| Country of manufacture | China |
| Minimum magnification | 3.00 x |
| Maximum magnification | 24.00 x |
| Front lens diameter | 50mm |
| total length (cm) | 28.00 cm |
| Material | Aluminium |
| Productgroup | Thermal imaging scopes, Riflescopes |
| Manufacturer warranty | 5 years |
| Color | black |
| Reticle | Multi reticle |
