InfiRay HYH75W RICO HYBRID 640 4x 75mm Multi-function Thermal Weapon Sight.

InfiRay HYH75W RICO HYBRID 640 4x 75mm Multi-function Thermal Weapon Sight.

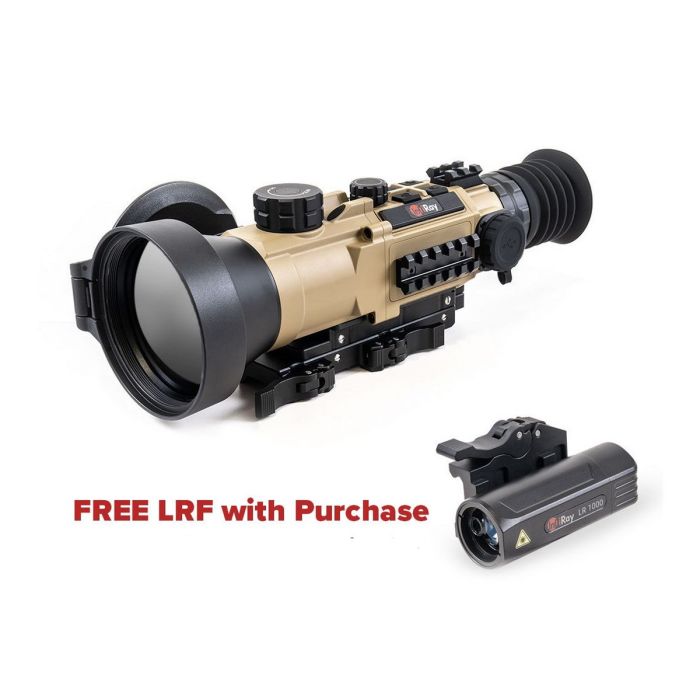

SPECIAL OFFER! Now comes with free Laser Range Finder ILR-1000 (SKU AC82).

The ILR-1000-2 Laser Rangefinder (AC82) connects to the HYBRID via USB-C (data and power), providing real-time ranging data that can even integrate with user-supplied ballistics data and apply hold-over on a custom reticle.

The InfiRay Outdoor RICO HYBRID fuses the capabilities of a thermal clip-on and a thermal weapon sight to create a new breed of thermal device. The HYBRID gives you never-before-seen versatility and performance, boasting a 3,600 yard detection range as a dedicated thermal sight, or compatibility with day optics up to 10× as an inline clip-on sight. The combination of the HYBRID’s low-distortion orthoscopic eyepiece and a 1.03-inch large-format 2560×1920 display provides comfortable viewing as a dedicated sight while still maintaining the pixel density and resolution for use as a clip-on optic. The HYBRID also unlocks advanced features such as compatibility with a 1,000 yard laser rangefinder, a custom reticle generator, Bluetooth remote, and an onboard ballistic solver.

PLEASE NOTE: The HYH50W and HYH75W both use a IBP-1 type battery (4400mAh). THE IBP-1 battery that ships with the HYH50W is the same battery used by the RICO Mk1 and RICO Pro Series. The battery that ships with the HYH75W is an enhanced IBP-1 that features the FDE ceramic coated finish and improved ingress protection. The HYH75W will run on the original IBP-1 battery, but will not be IP67 weatherproof in this configuration. For best results, always use the batteries that shipped with the product.

Optics
Objective Focal Length: 75mm
Detection Range: 3600 Yards
Optical Magnification: 4x
Digital Magnification: 8x
Objective Lens Material: Germanium
Horizontal Angular Field of View: 5.9°
Vertical Angular Field of View: 4.4°
Objective Diameter: 75mm
Objective F#: 1.0
Focusing Mechanism: Manual Focus
Eye Relief: 60mm
Diopter Range: -4 to +2
Display Type: AMOLED
Display Resolution: 2560x1920

Sensor Specifications
Sensor Type: InfiRay MICRO II
Device Technology: Thermal Imaging
Sensor Resolution: 640×512
Sensor Pixel Size: 12μm
Thermal Sensitivity: <25mk
Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
Sensor Frame Rate: 50hz

Environmental Specifications
Operating Temperature Range: -4°F~122°F
Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
Ingress Protection: IP67

Features & Performance
Warranty: 5 Years
Startup Time: <10 Seconds, Instant from Standby
Rangefinder: ILR-1000-2 LRF (Optional/Not Included)
Color Palettes: White Hot, Black Hot, Red Hot, Iron Red, Rainbow, Outline
Picture-in-Picture: Yes
Storage Capacity: 64GB
Connector Output: Power/Data
User-Updatable Firmware: Yes
Mobile App: Yes
Run Time: 6+
Power Source: USB-C External, IBP-1H Li-ion Battery Pack
One-Shot Zero: Yes
Stand-by Mode: Yes
Reticle: 9 (7 Static, 1 DIY, 1 BDC)
Connector Type: USB-C
External Power Source: USB-C
Wifi: Yes
Onboard Recording: Yes
Image Capture: Yes

Physical
Mounting Interface: Picatinny MIL-STD 1913 Rail
Housing Material: Magnesium Alloy
Weight: 45.08 Oz.
Height: 3.58"
Width: 4.13"
Length: 12.20"
