InfiRay Outdoor AFFO R+ AP13 Thermal Monocular 256x192 with 13mm frontlens

InfiRay Outdoor AFFO R+ AP13 Thermal Monocular 256x192 with 13mm frontlens.

The InfiRay Outdoor AFFO series is an affordable and compact thermal imager designed for easy one-handed operation.

This highly versatile imager is rugged yet lightweight, making it ideal for many applications such as law enforcement, hunting, search and rescue, and security.

Powered by a high-performance 12µm sensor, the AFFO series uses next-generation Reality+ image processing to provide a crisp, clear viewing experience that outperforms comparable economy imagers.

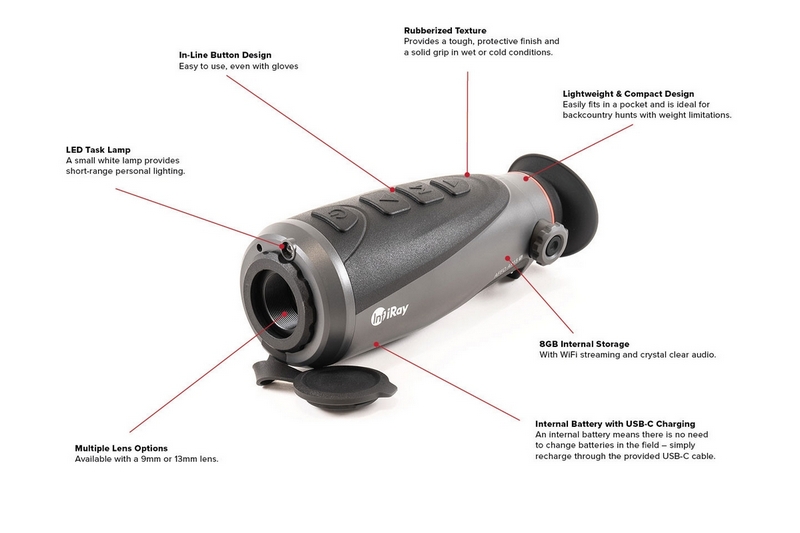

The user-friendly interface has a built-in stadiametric rangefinder, picture-in-picture function, hotspot tracking, internal recording, and a 9+ hour run-time. Capture vivid, realistic photos and videos in any weather or lighting conditions, taking your thermal imaging experience to the next level.

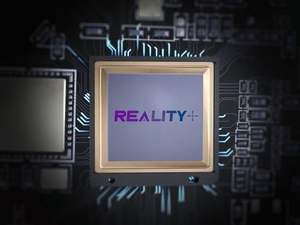

Learn more about InfiRay Reality+ Image Processing

Main features:
Sensor Pixel Size: 12μm
Objective Focal Length: 13mm
Digital Magnification: 4x, stepped
Objective F#: 0.9
Objective Diameter: 13mm
Sensor Frame Rate: 25hz
Detection Range: 670 Yards
Optical Magnification: 2x
Device Technology: Thermal Imaging
Onboard Recording: Yes
Sensor Resolution: 256x192

Optics
Display Type: AMOLED
Eye Relief: 20mm
Objective Focal Length: 13mm
Digital Magnification: 4x, stepped
Diopter Range: -7 - +2
Vertical Angular Field of View: 8.4°
Horizontal Angular Field of View: 13.5°
Focusing Mechanism: Fixed Focus
Objective F#: 0.9
Objective Diameter: 13mm
Objective Lens Material: Germanium
Display Resolution: 600×400
Detection Range: 670 Yards
Optical Magnification: 2x

Environmental Specifications
Operating Temperature Range: -4°F~122°F
Recoil Rating: Not rated for recoil
Ingress Protection: IP67

Sensor Specifications
Sensor Type: Reality+
Sensor Pixel Size: 12μm
Thermal Sensitivity: <40mK
Non-Uniformity Correction (NUC): Automatic
Sensor Frame Rate: 25hz
Device Technology: Thermal Imaging
Sensor Resolution: 256x192

Physical
Mounting Interface: 1/4-20
Housing Material: Polymer
Weight: 12.0 Oz.
Height: 2.36
Width: 2.36
Length: 6.29

Features & Performance
Warranty: 5 Years
Startup Time: Under 10 Seconds
Color Palettes: White Hot, Black Hot, Red Hot, Color, Highlight
Picture-in-Picture: Yes
Storage Capacity: 8GB
Connector Output: Power/Data
User-Updatable Firmware: Yes
Mobile App: Yes
Run Time: 9+ hours
Power Source: USB-C External, Built-In Battery Pack
Stand-by Mode: Yes
Connector Type: USB-C
External Power Source: USB-C
Country of Manufacture: China
Wifi: Yes
Onboard Recording: Yes
Image Capture: Yes
