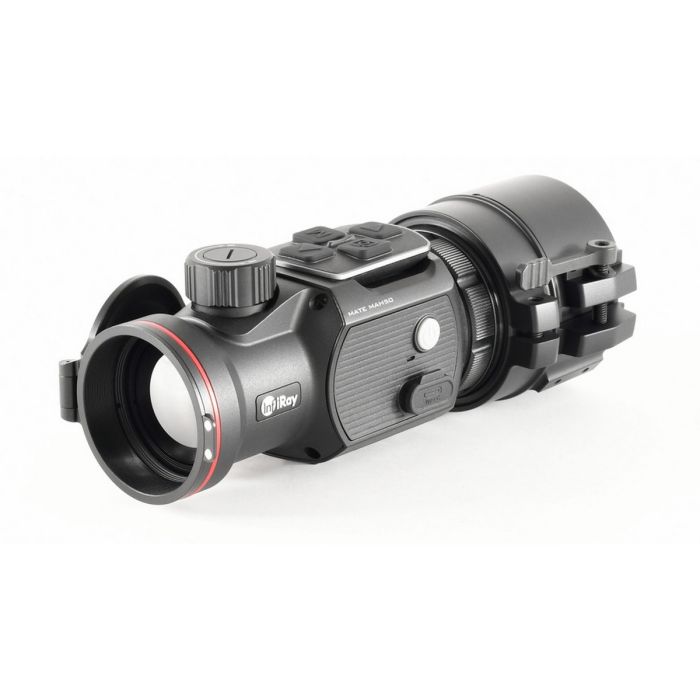

InfiRay Outdoor MATE 640 50mm MAH50 Clip-On Thermal Weapon Sight

InfiRay Outdoor MATE 640 50mm Clip-On Thermal Weapon Sight.

1-8x magnification and 2,400 yards of detection!

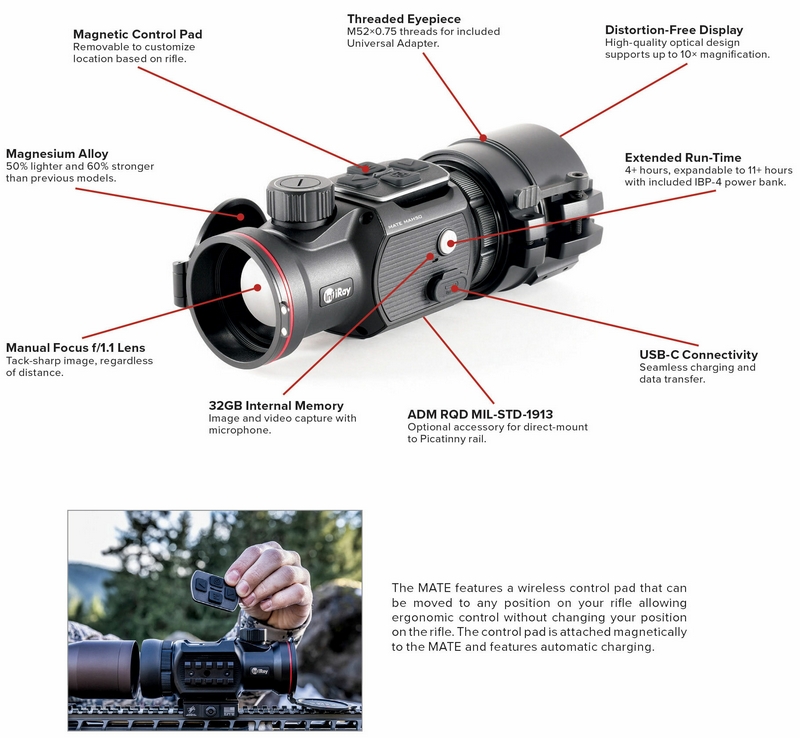

The InfiRay Outdoor MATE Series thermal clip-on brings an all-new level of versatility to your existing dayscope. With a high-performance 12 μm detector, magnesium alloy housing, distortion-free display, and removable control pad, the MATE series ensures a precise and repeatable transition when dayturns to night.

The MATE can be mounted directly to the objective of your day scope or be attached via MIL-STD-1913 Picatinny rail. Additional accessories, including an external LRF module and monocular extension, provide improved flexibility on your next hunt or trip to the range.

Optics specifications
Objective Focal Length: 50mm
Detection Range: 2400 Yards
Objective Lens Material: Germanium
Optical Magnification: 1x
Digital Magnification: 8x, stepped
Focusing Mechanism: Manual Focus
Display Type: AMOLED
Vertical Angular Field of View: 6.6°
Horizontal Angular Field of View: 8.8°
Objective F#: 1.1
Objective Diameter: 50mm
Display Resolution: 1024×768

Environmental Specifications
Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
Operating Temperature Range: -4°F~122°F
Ingress Protection: IP67

Features & Performance
Wifi: Yes
Image Capture: Yes
Mobile App: Yes
Connector Output: Power/Data
Connector Type: USB-C
Video Output: Analog RS-170/NTSC
Onboard Recording: Yes
Warranty: 5 Years
Startup Time: Under 10 Seconds
Rangefinder: ILR-1200-2 LRF (Optional/Not Included)
Color Palettes: White Hot, Black Hot, Red Hot, Color
Storage Capacity: 32GB
User-Updatable Firmware: Yes
Power Source: Built-In Battery Pack (4+ Hours), IBP-4 Power Bank (6+ Hours)
Stand-by Mode: Yes
External Power Source: USB-C
Country of Manufacture: China

Physical
Mounting Interface: Picatinny STD-1913 rail
Housing Material: Magnesium Alloy
Weight: 18.70 oz
Height: 2.83"
Width: 2.44"
Length: 5.75"

Sensor Specifications
Sensor Type: InfiRay MICRO II
Sensor Pixel Size: 12μm
Thermal Sensitivity: <25mk
Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
Spectral Response: 8-12 Microns
Sensor Frame Rate: 50hz
Device Technology: Thermal Imaging
Sensor Resolution: 640×512
