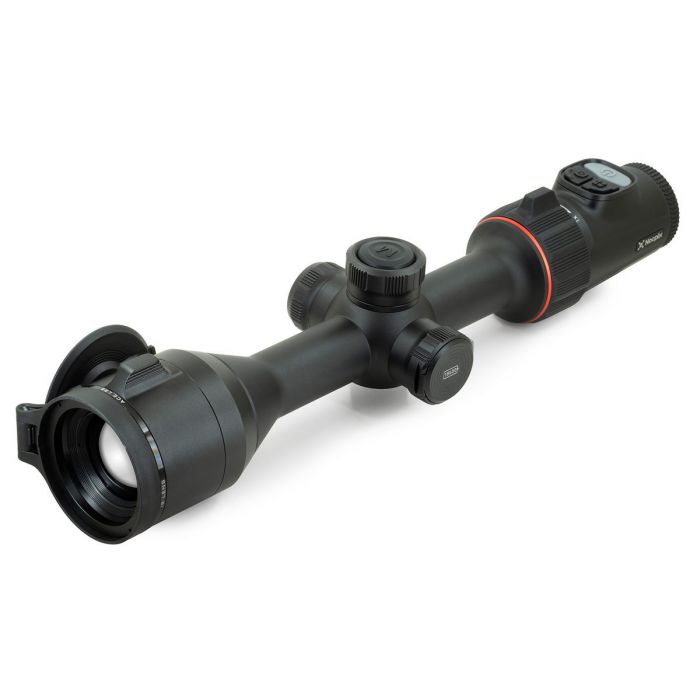

Nocpix ACE L35 384x288 35mm Thermal Scope with Ocular Magnifier

Nocpix ACE L35 384x288 35mm Thermal Scope with Ocular Magnifier.

The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a 18 mK NETD sensor for an incredibly detailed and precise image.

New for 2025, the ACE L35 offers a more affordable option in the ACE line for predator and hog hunters who don't require a laser rangefinder or higher resolution sensor. Packing tremendous value, the ACE L35 retains all other features of ACE line of thermal rifle scopes.

• A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
• High-contrast round 2560×2560 AMOLED display provides increased clarity and detail.
• Simplified controls offer improved ergonomics and a better user experience in the field.
• Uses common 18650 style rechargeable batteries, quickly changeable during your hunt.
• Charge through the unit with a unique lock-out USB-C port design.

Optics
Display Type: AMOLED
Eye Relief: 50mm
Objective Focal Length: 35mm
Digital Magnification: 4x
Diopter Range: -5 to +5
Vertical Angular Field of View: 5.7°
Horizontal Angular Field of View: 7.5°
Focusing Mechanism: Manual Focus
Objective F#: 0.9
Objective Diameter: 35mm
Objective Lens Material: Germanium
Display Resolution: 2560×2560
Detection Range: 1970 Yards
Optical Magnification: 3x

Environmental Specifications
Operating Temperature Range: -4°F~122°F
Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
Ingress Protection: IP67

Sensor Specifications
Sensor Type: Nocpix 384
Sensor Pixel Size: 12μm
Thermal Sensitivity: <18mk
Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
Sensor Frame Rate: 60hz
Device Technology: Thermal Imaging
Sensor Resolution: 384×288

Physical
Mounting Interface: QD Picatinny
Housing Material: Aluminum Alloy
Weight: 37.0 oz.
Height: 2.44
Width: 3.54
Length: 13.78

Features & Performance
Warranty: 5 Years with 5 day turnaround time
Startup Time: <10 Seconds, Instant from Standby
Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
Picture-in-Picture: Yes
Storage Capacity: 64GB
Connector Output: Power/Data
User-Updatable Firmware: Yes
Mobile App: Yes
Run Time: 7+ hours
Power Source: USB-C External, 18650 Battery, Built-In Battery Pack
One-Shot Zero: Yes
Stand-by Mode: Yes
Connector Type: USB-C
External Power Source: USB-C
Wifi: Yes
Onboard Recording: Yes
Image Capture: Yes
Video Output: Yes
