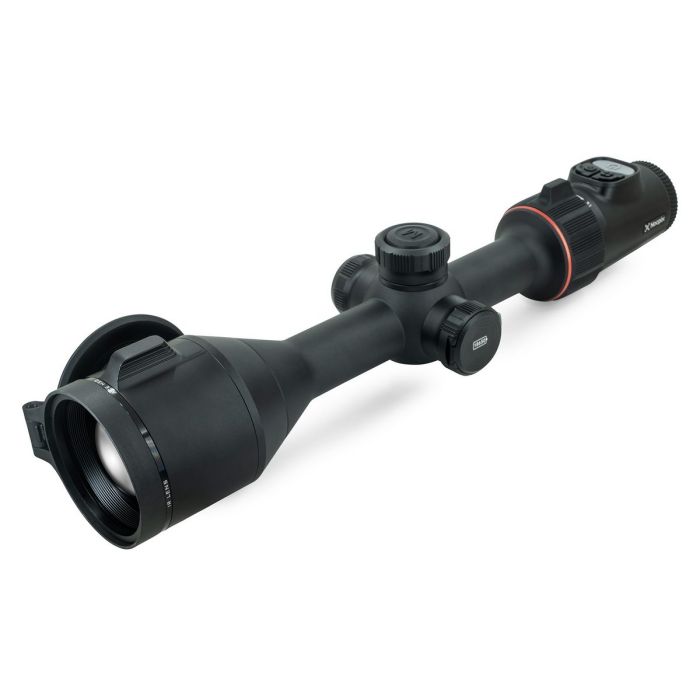

Nocpix ACE S60R 2x 1280x1024 60mm LRF Thermal Scope with Ocular Magnifier

Nocpix ACE S60R 2x 1280x1024 60mm LRF Thermal Scope with Ocular Magnifier.

The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a ≤15 mK NETD sensor for an incredibly detailed and precise image. The 1,300-yard capable laser rangefinder on the ACE is integrated directly into the 50 mm germanium objective lens. In addition to streamlining the body design and reducing bulk, this allows for improved horizontal alignment of the infrared laser with the viewing system.

New for 2025, the ACE S60R brings the best-available thermal sensor resolution (1280x1024) to the most versatile thermal weapon sight platform on the market. With a 2x native (base) magnification, a 12x digital zoom and a 1-3x Optical Magnifier, the magnification range delivers fantastic image quality at all ranges.

• Lens-integrated laser rangefinder adds rangefinding capability to the optic and better laser alignment without adding bulk.
• A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
• High-contrast round 2560×2560 AMOLED display provides increased clarity and detail.
• Simplified controls offer improved ergonomics and a better user experience in the field.
• Uses common 18650 style rechargeable batteries.
• A ballistic calculator function displays bullet drop values based on the laser rangefinder input data and a user-customized cartridge profile.
• Charge through the unit with a unique lock-out USB-C port design.

Optics
Display Type: AMOLED
Eye Relief: 50mm
Objective Focal Length: 60mm
Digital Magnification: 12x
Diopter Range: -5 to +5
Vertical Angular Field of View: 11.7°
Horizontal Angular Field of View: 14.7°
Focusing Mechanism: Manual Focus
Objective F#: 1.0
Objective Diameter: 60mm
Objective Lens Material: Germanium
Display Resolution: 2560×2560
Detection Range: 3400 Yards
Optical Magnification: 2x

Environmental Specifications
Operating Temperature Range: -4°F~122°F
Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
Ingress Protection: IP67

Sensor Specifications
Sensor Type: Nocpix 1280
Sensor Pixel Size: 12μm
Thermal Sensitivity: <15mk
Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
Sensor Frame Rate: 50hz
Device Technology: Thermal Imaging
Sensor Resolution: 1280×1024

Physical
Mounting Interface: QD Picatinny
Housing Material: Aluminum Alloy
Weight: 45.9 oz
Height: 2.76
Width: 3.54
Length: 15.35

Features & Performance
Warranty: 5 Years with 5 day turnaround time
Startup Time: <10 Seconds, Instant from Standby
Rangefinder: Integrated 1200 yd LRF
Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
Picture-in-Picture: Yes
Storage Capacity: 64GB
Connector Output: Power/Data
User-Updatable Firmware: Yes
Mobile App: Yes
Run Time: 6+ hours
Power Source: USB-C External, 18650 Battery, Built-In Battery Pack
One-Shot Zero: Yes
Stand-by Mode: Yes
Connector Type: USB-C
External Power Source: USB-C
Wifi: Yes
Onboard Recording: Yes
Image Capture: Yes
Video Output: Yes
